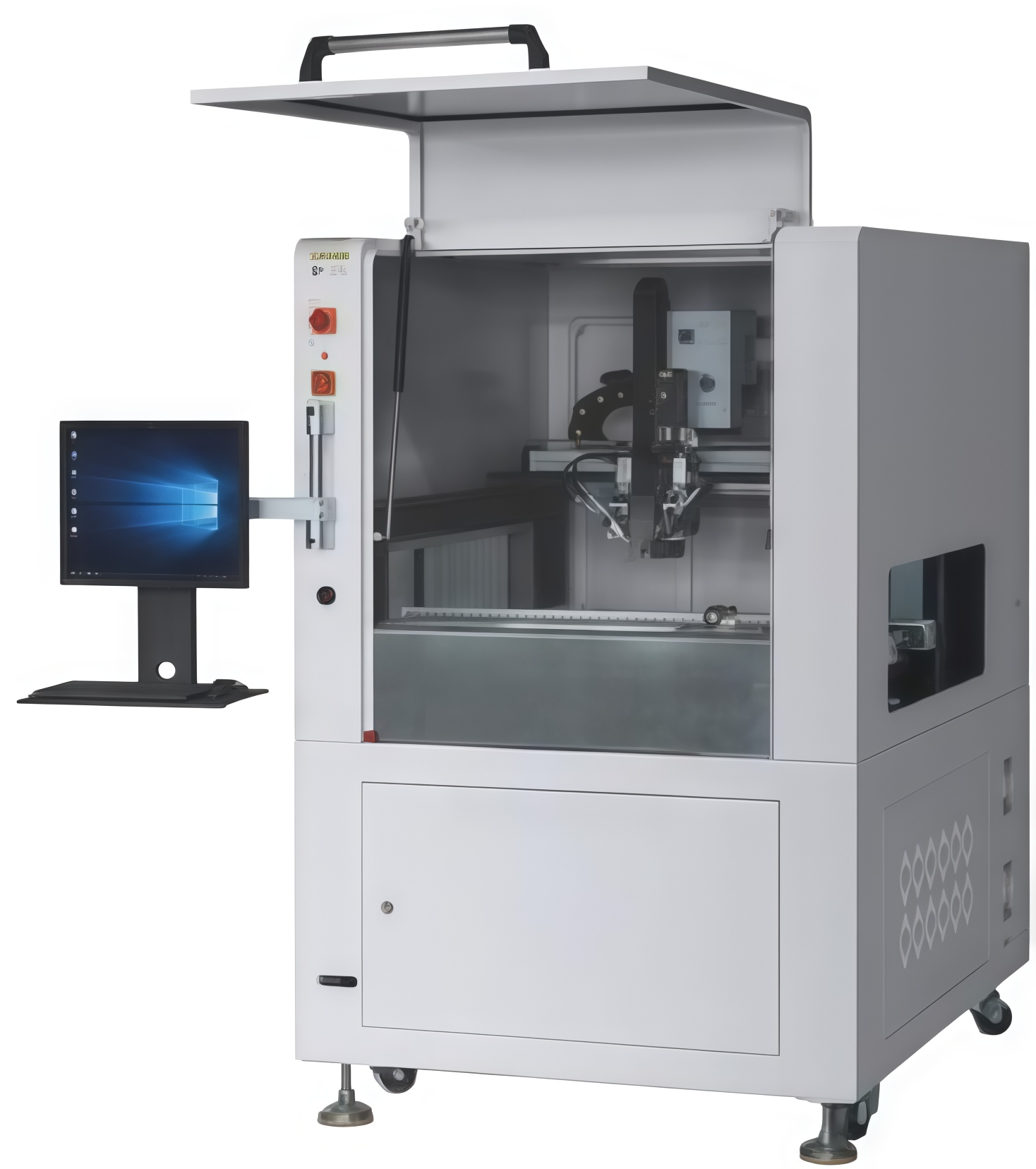

在线式灌胶机ZX781

料缸均配备低液位传感器，物料不足时可自动报警；设备搭载低气压保护与过载保护功能，支持中文故障信号输出；静态或动态混合器强制搅拌方式，可提升物料混合均匀程度；配备触摸调节界面，操作人员可便捷调整配比参数；吐出速度、吐出量皆可设定，设备出胶平稳，正常工况下不易出现滴胶、漏胶情况；多种选配功能，可适配多种灌胶加工工艺；本机型支持嵌入式安装，适配产线使用。

详细内容

JUND-ZX781

功能特点

※料缸均配备低液位传感器，物料不足时可自动报警；设备搭载过载保护功能，支持中文故障信号输出

※静态或动态混合器强制搅拌方式，可提升物料混合均匀程度

※配备触摸调节界面，操作人员可便捷调整配比参数

※吐出速度、吐出量皆可设定，设备出胶平稳，正常工况下不易出现滴胶、漏胶情况

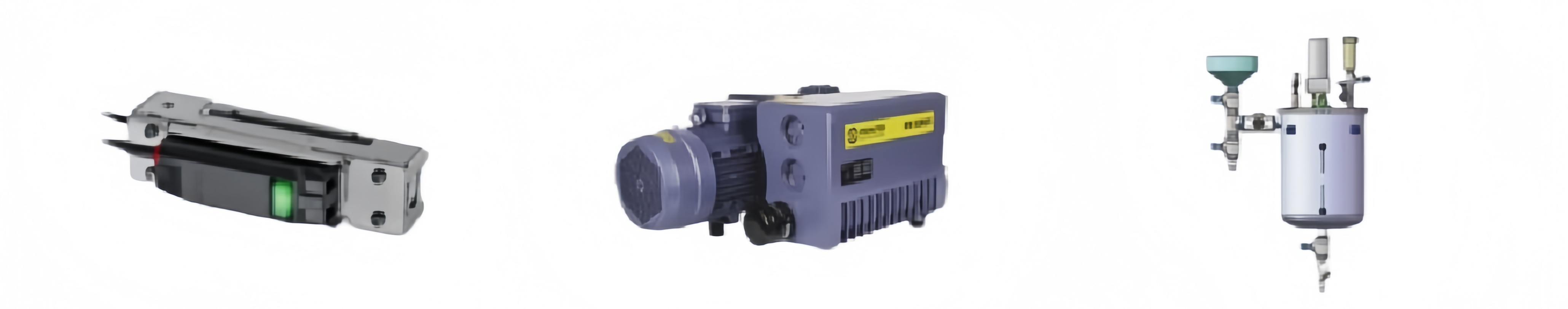

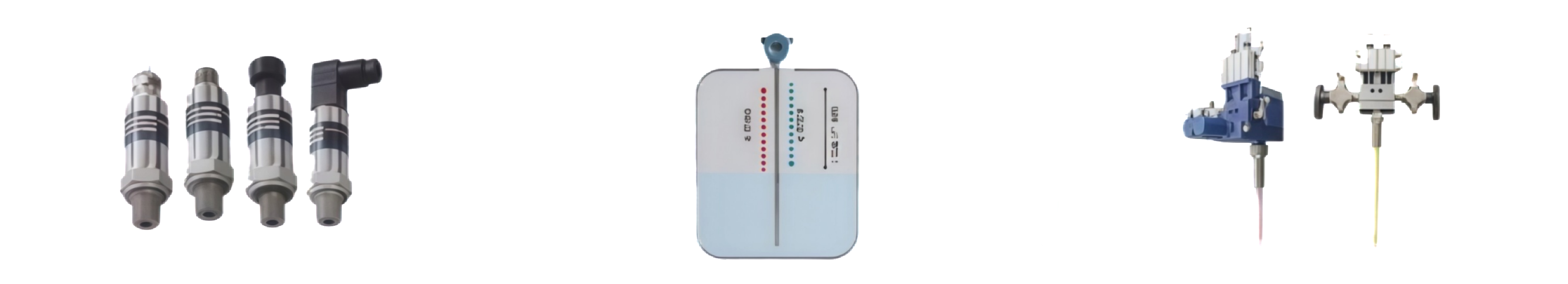

※多种选配功能，可适配多种灌胶加工工艺

※本机型支持嵌入式安装，适配产线使用

设备尺寸

外形尺寸：L1550mm*W1350mm*H1850mm

电源输入：AC220V (170~264V)

电源输出：DC24V 14.6A

气源压力：0.4-0.6Mpa

整机功率：4200W

整备重量：525Kg

设备参数

设备配置 Equipment configuration	硅胶配置 Siliconeconfiguration	环氧树脂配置 Epoxy resin configuration	聚氨酯配置 Polyurethane configuration
控制系统/Controlsystem	正版Win+专业自研软体/Genuine Win+profesionalself-developed software
A计量泵/Metering pump A	精密螺杆泵套件/Precision screw pump kit	精密螺杆泵套件/Precision screw pump kit	精密齿轮/螺杆泵套件Precision gear/screw pump kit
B计量泵/Metering pump B	精密螺杆泵套件/Precision screw pump kit	精密齿轮泵套件/Precision gear pump kit	精密螺杆/齿轮泵套件Precision screw/gear pump kit
吐出精度/Dispensing accuracy	Max:<±2%
配比精度/Mixing Ratio accuracy	Max: <±2%
计量方式/Metering method	数字脉冲/胶水比重计量/Digital pulse/glue specific gravity measurement
吐出胶量/速度/Dispensing volume/Speed	≥1g至5000g/ 1g/S - 20g/S
配比范围/Mixing ratio range	100:100 （A:B） or 100:10（A:B）触屏可调/Touchscreen adjustable
混合方式/Mixing method	精密自混合截止阀/Precision self mixing shut-off valve

A料桶容积/Volume of material bucket A	SUS304卡箍式30L	SUS304卡箍式30L	SUS304卡箍式30L or 10L
B料桶容积/B material bucket capacity	SUS304卡箍式30L	SUS304卡箍式10L	SUS304卡箍式30Lor 10L
A料桶功能/A material bucket function	料桶搅拌/料桶加热/液位警报Bucket mixing/bucket heating/liquid level alarm	料桶搅拌/料桶加热/液位警报Bucket mixing/bucket heating/liquid level alarm	料桶加热/液位警报Bucket heating/liquid level alarm
B料桶功能/B material bucket function	料桶搅拌/料桶加热/液位警报Bucket mixing/bucket heating/liquid level alarm	料桶加热/液位警报Bucket heating/liquid level alarm	料桶加热/液位警报Bucket heating/liquid level alarm
料桶材质/Material of material bucket	料桶均采用SUS304不锈钢制作，快装卡扣式密封性能更强、全弧形锥底中心下料更顺畅The material buckets are all made of SUS304 stainless steel, and the quick loading buckle type has stronger sealing performance, and the center of the full arc-shaped cone bottom allows for smoother feeding
清洗裝置/Cleaning system	HMI一键清洗+2L清洗压力桶/HMI one click cleaning+2L cleaning pressure tank
启动方式/Startup mode	按钮启动/脚踏开关/外部启动信号端口/Push button start/foot switch /external start signal port
三轴结构/Three-axis structure	XYZ均采用精密丝杆模组/XYZ All use precision screw modules
三轴动力/Three-axis drive	XYZ均采用伺服电机驱控/XYZ All are driven by servo motors

三轴机构/Three axis mechanism	伺服电机+进口丝杆+进口直线导轨/Servo motor+imported screw+imported linear guide rail
三轴系统/Three-axis system	工控机+运动控制卡+键鼠操作/Industial computer + motion cntol card + keybord and mouse operation
有效行程/Effective travel	XYZ=700mm800mm100mm（可定制customizable）
重复精度/Repeatability accuracy	±0.02
运行速度/Operating speed	XY轴Max:800mm/s;Z轴Max:300mm/s
运动编程/Motion programming	支持插补、点、线、圆、弧任意编程/Support interpolation, point, line, circle, and arc arbitrary programming
